H802RA Artnet WS2811 ws2812b WS2801 Led Decoder Led Strip Light Madrix Pixel Controller DMX Artnet Controller
H802RA controller supports Artnet
Support Sir Maidrix four ports 580 points per port
1. Product introduction: H802RA adopts standard Ethernet protocol and supports ArtNet protocol. Four output ports, can control a variety of LED driver chips, support automatic addressing function. The input network port can be directly connected to the computer network card, and can also be connected to the offline and online master control (H802TB, H802TC, H804TC, H805TC, H803TV), and can also be connected to the switch and the photoelectric converter. When online, the supporting software is “LED Studio Software” or “MADRIX”, and the offline supporting software is “LED Programming Software”.
Second, support driver chip
> DMX512, HDMX; LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, LPD1886;
> TM1812, TM1809, TM1804, TM1803, TM512, TM1926, TM1913, TM1914, TM1814;
> UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS512, UCS8904;
> APA102, APA104, P9813, WS2801, WS2803, WS2811, WS2812, WS2821,
> SM16716, SM16711, INK1003, LX1003, MY9221, MBI6021, MBI6024, LD1510, LD1512, LD1530, LD1532 etc.
> UCS8904 controls 3200 points, other chips control 4096 points. MY9221, UCS8904, MBI6024 are 65536 levels of gray,
> LPD1886 is 4096-level grayscale, MBI6021 is 1024-level grayscale, LD15XX only controls 256-level grayscale mode.
Three, performance characteristics

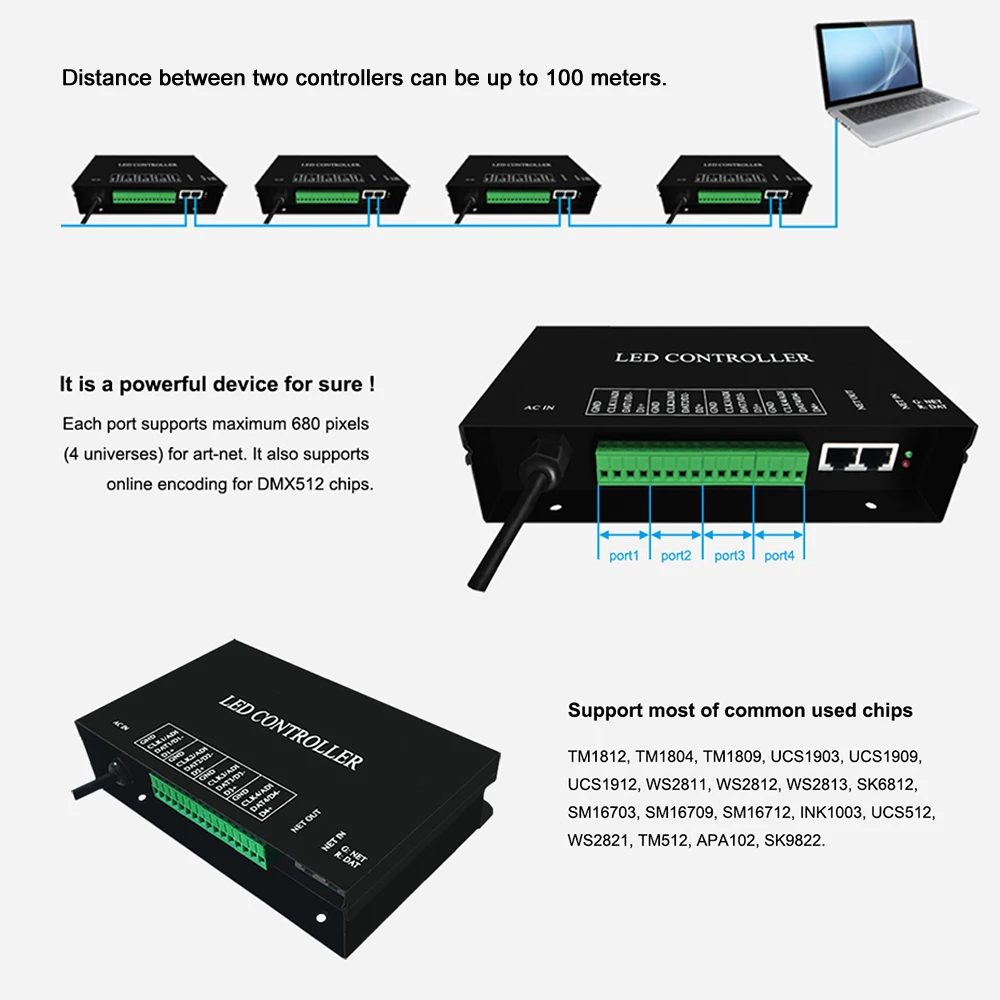

1, Four output ports, more control 4096 pixels. The number of control points per port is 1024.
2. Support Art-Net protocol, can cooperate with MADRIX software.
3. Addressing DMX chips of Tianwei and Lianxinke.
4. Can be set as repeater and amplifier with “LED software”.
5, can be connected and detached, can be directly connected to the computer network card, can also be connected to the offline and online master (H802TB, H802TC, H804TC, H805TC, H803TV)
6, Flexible use, sub-control can be interchanged at will, strong adaptability to lighting engineering.
7. The transmission distance is long, the transmission signal adopts the standard Ethernet protocol, and the nominal distance is 100 meters.
8. The sub-control can be used as a relay, and can directly pass the photoelectric conversion module, so that the transmission distance reaches more than 25 kilometers.
Fourth, instructions for use: offline to connect to the main control
Download the detailed user manual here please
H802RA setting with madrix user manual here
more user details with madrix ,download here please
There is detailed user for ws2811 or sm1703 LB1934 sk6812 sk6813 ws2815 pixel led strip work with H802RA via madrix ,enjoy please
