HD107S with Date Rate 30M HZ

HD107s is most promising digital Pixel led in 2019， it is absolutely replacment of Original apa102/apa102C,bec it is much faster and stable and engery saving than others..

Advantages:

• CLK+Data double wire transfer.
• PWM refresh rate can be +27kHz
• Max transfer Rate is 30MHZ
• And HD107S with built-in sleep function, no work no electric consumption, very good for battery-powered application,
• The HD107sled lights up looks like linear lighting ,large lighting beam
• Pure cooper bracket and Pure Gold wire for HD107Pixel LED chip
• CMOS process, low voltage, low consumption
• Synchronization of two-way
• Choose positive output or negative RGB three-color LED output
• 256 Gray scale(8bits) 16bits(65536 gray scale ) optional
• Build-20ma constant current output
  test result of  HD107s led ,please see

  https://www.youtube.com/watch?v=396df_2D5Hk
  Below is video  of  HD107s VS  apa102 led ,please appreciate ,
  https://www.youtube.com/watch?v=e-TgmstgJQg
  https://www.youtube.com/watch?v=VRddzqVqGK4

  download the specification here please

• https://www.rose-lighting.com/wp-content/uploads/sites/53/2020/05/HD107S-5050-Specificaion-V1.0.1.pdf

It is fastest digital rgb pixel led chip HD107s  in the world so far.

it will be the Most promising &hot selling digital pixel led chip in 2019, with PWM refresh rate: 27kHz and transmission rate 30M HZ,  Absolutely a best choice to replace apa102 LED,bec it is much more stable and faster and enger saving ,

 Product Advantages

• PWM refresh rate:27kHz
• HD107S LED with less voltage drop and one roll(5meters)can be powered with one power input without color difference, so the 5m long voltage drop problem is solved,
• The HD107s LED is low consumptionand high energy saving ,( with Built-in dormancy Mode inside )
• Red copper bracket and pure gold wireHigh brightness LED lamp with luminous intensity(mcd)
• The HD107sled lights up looks like linear lighting ,large lighting beam
• Hongqi brand 2OZ PFCB(35um cooper)with double cooper layer,
• 2 sides membrane cover the PFCB.Make sure the copper no drop from the pcb board ,

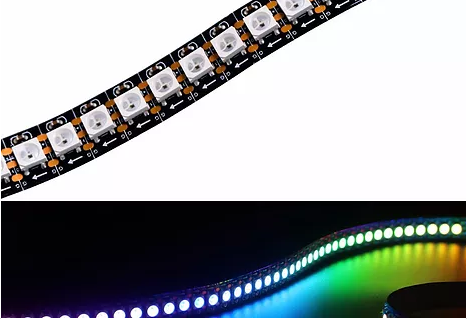

• Product Technical parameter
• Color:Full Color RGBLED Quantity: 30/48/60/72/96/144 leds per meter
• Size: 5000*10*2.5(mm) 8mm/10mm  width optional
• View angle:120°
• Working Input Voltage: 5VDrive Mode:Constant Voltage
• pixel pitch 33.33mm/16.66mm/.. 6.94mm
• white/black PCB with width 10mm optional
• PCB: 2.ounce thickness board with 35um copper,(4OZ optional )
• Double cooper layer with double sides membrane cover the PCB board
• Packaging: 5m/roll or customized length available
• absolute 2years warranty

2.There are flat & curved flexible Neon LED here

there is no dark area and No light leakage for monochrome series ,Curved  type can replace LED tube ; flat  types can replace led linear light too ;The length, power, brightness and CCT ,ect all can be customized at you wonder;

3.it can be folded and bent without problem .

4.Easy to be installed and transported .

5.applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)

6.take the advantage of unique optical technique and special housing design ,it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,no color change outside within 5 years warranty

7.all series belong to low voltage flex led strip,voltage varies from DC5V-DC24v，can be cut at 1led,3led,6leds to make a individual part.
