Full color addressable ws2818/LB1934 dual signal Pixel RGB 5050 LED Strip 20pixels/m 60leds/m

Full color addressable ws2818/LB1934 dual signal Pixel RGB 5050 LED Strip 20pixels/m 60leds/m

Description
Global Tab

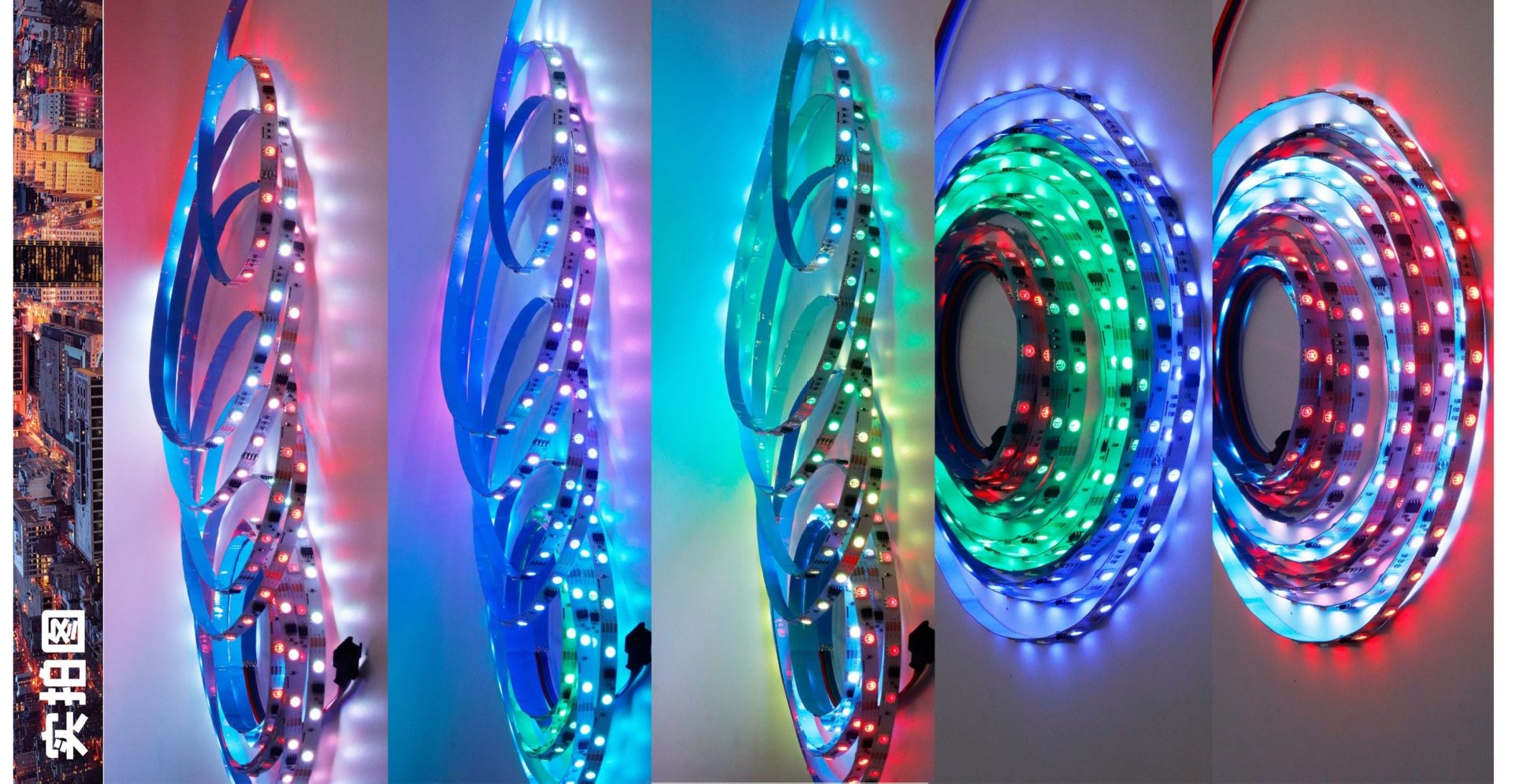

Full color addressable ws2818/LB1934 dual signal Pixel RGB 5050 LED Strip 20pixels/m 60leds/m

best seller tm1934 DC 12V 20pixels 60leds Digital Pixel LED Strips with dual signal

1934 LED strip wiring

1934led strip with silicon gel coating Ip65

below is 1934 led stirp 24v 60led with lens to make big beam viewing

1934led strip with silicone tube with ip67

we can make other color -three white

Describe:

– Control IC included, supporting numerous Color-change effects;
– Pcontrol by SD controller,Arduino,DMX512,Artnet;
– Flexible PCB 12V low voltage input;
– 60 RGB smd 5050 leds and 20 Pixels per meter;
– Absolutely addressable ,each IC control 3 leds
– 5M per roll,also Customer’s length available;

-there is four line , DateA and Data B and GND and DC12V+

Specification

Item	RL-STR-tm1934-5050RGB-60-12V
LED Quantity	60leds/m
PCB thickness	10mm width,2 ounce copper( 35um thinkness)
PCB Color	White PCB ,Black PCB
IC type	LB1934 (SPI protocel ,same work as ws2811,ws2815)
cutting unit	50mm
IP Rating	IP20/IP65/IP67/Ip68
Connector	4PIN JST-SM connector
Control Model	SPI control
Controller	T1000s/K1000c/T-500K/Arduino/Glediator/DMX/Artnet/Raspberry
Product Keywords	dual signal pixel led strip ;LB1934 pixel led tape

Advantages

1. This is dual signal 12V pixel led strip , that different with the dual signal , one pixel no work , donot affect next pixels working ,

2. It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.12V and 24V optional ( 3leds one IC with 12V, 6leds with one IC with 24V)

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. Flexible PCB material . ever 3 LEDcan be cut with 12V, ever 6 LEDcan be cut with 24V,

7. 60leds per meter . 12V low voltage inputted , don’t over 13V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm GW: 12.5kg with nonwaterproof Ip20

Waterproof Rate:

IP20 Non-waterproof with 3M sticker on the back
IP65 waterproof is silicone gel on the surface
IP67: silicone tube/coating
IP68: silcone gel(or epoxy) inside silicone tube.

Connection guide

SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino.

(offline / PC online)

LED power suppply: power supply, T- series, A- series power supply…(waterproof / non-waterproof)

Picture advantages :

总有客户问我们灯带为啥这么贵，材料不一样，生意理念不一样。
设计上：别人是1电阻1电容，我们是4+1，头部还加了防反接保护的。
灯珠：每一颗灯珠都种球，加强焊线工艺
线路板：2550铜双面覆膜
质保：2年内5%不良免费换新；超过5%产品问题，自费全换。
我们想用好的产品换取可持续发展的时间空间，

Customers always ask us why our light strips are so expensive because the materials are different and the business philosophy is different.
In terms of design: others use 1 resistor and 1 capacitor, but ours uses 4+1, and the head is also protected against reverse connection.
Lamp beads: Each lamp bead is seeded to enhance the welding process.
Circuit board: 2550 copper double-sided coating
Warranty: Free replacement for 5% defective products within 2 years; if there are more than 5% product problems, full replacement at your own expense.
We want to exchange good products for time and space for sustainable development.

Download datasheet here please

https://www.rose-lighting.cn/static/upload/file/20240414/1713088516142700.pdf

Test report

https://www.rose-lighting.cn/static/upload/file/20240414/1713088534196168.pdf
