Dc5V 360 View 3D SPI Vertical 5050 RGB pixel led Tube 30pixels 32 pixels 48 pixels 60 pixels 72 pixels 144 pixels per meter optional
- Description
- Global Tab
Dc5V 360 View 3D SPI Vertical 5050 RGB pixel led Tube 30pixels 32 pixels 48 pixels 60 pixels 72 pixels 144 pixels per meter optional
https://www.youtube.com/watch?v=EEsIWxs8Ygg
Product Parameter:
P/N | LED Qty/meter | Diamater Size(mm) | Pixel | working voltage | each led power | Protocol | MCD per LED | IP | |
RL-Bar-sk6812-5050RGB-30/32/48/60/72/144-5V | 30/32/48/60/72/144 | 15mm/20mm/30mm/40mm | 30/32/48/60/72/144 | DC5V | 0.24W(max) | SPI | R800/G2100/B480 | IP65 |
Features:

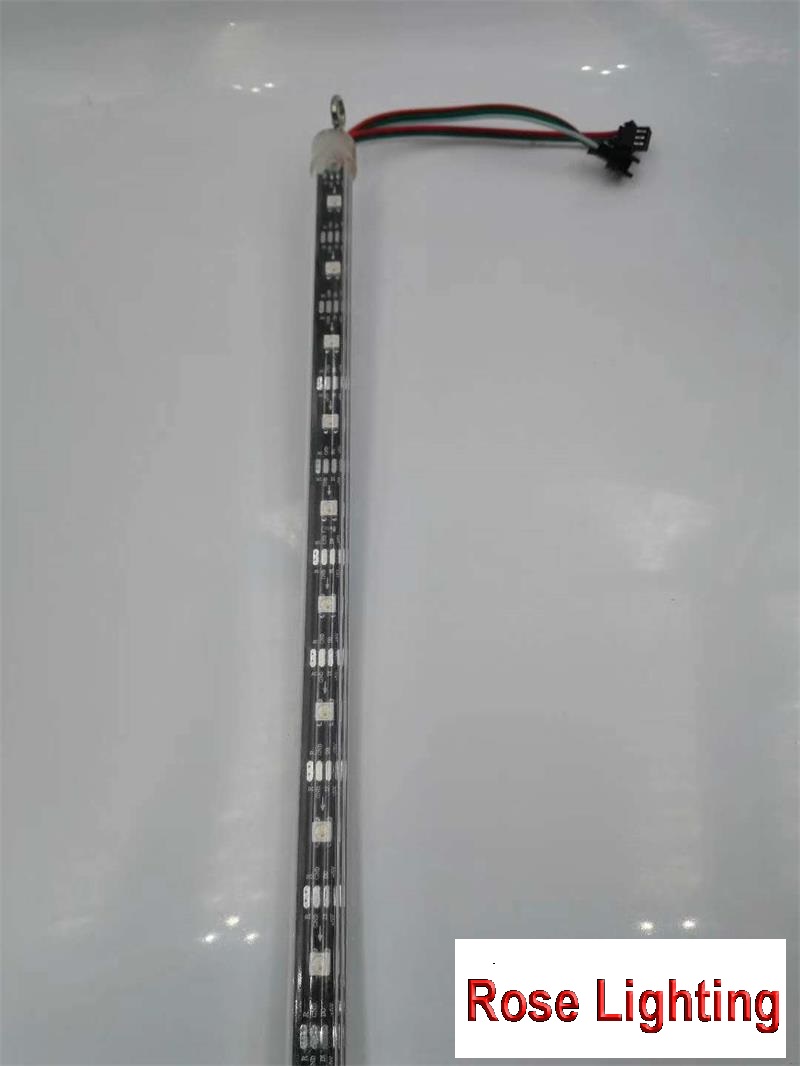

1.This SPI Control LED Tube designed by clear PC tube,
2.The whole tube had 30/32/48/60/72/144 led per side ,
3.led type: bright Epistar SMD RGB LED (one side),
4.Both side make it 360 viewing,
5.Each tube included 1pcs eye hook for installation,
6.Every tube attached a waterproof 3Pin connector (clear color/black color),
7.The length of connector 20cm,3Pin 20AWG copper wire in white PVC,(customs length available)
8.The tube has femle and male 3pin connector to connect other Tubes,
9.The diameter is tube is 30mm (we also offer 20mm/25mm/15mm /40mm diameter size),
10.Avaliable size : 50cm & 100 cm.
11. Available Pixels per meter :30/32/48/60/72/144 led per meter
Connection to pixel led controller and 5V power sure:
Youtube project video show
https://www.youtube.com/watch?v=ayouW2Lkd9I
https://www.youtube.com/watch?v=I3O7x1Jk89o
Application
1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge
