Dmx512 RGB Rental Fast Connection 360° viewing DMX512 RGB led Stage Tube
- Description
- Global Tab
Dmx512 RGB Rental Fast Connection 360° viewing DMX512 RGB led Stage Tube
Overview:
First of all, this rentable Fast Connection 360° DMX512 Digital Stage Round Tube, complains to the DMX512 communication protocol.
Double sides PCB LEDs, achieve 360 degrees emitting and without shadow.
Diameter is 40mm, 4 sizes for optional, 0.5M, 1M 1.5M, and 2M, indoor use, no waterproof.
Data sheet:
Product: | Rental Fast Connection 360° DMX512 Digital Stage Round Tube |
Item No.: | RL-Tube-DMX–RGB5050-144-24P-12V |
LED: | RGB 5050 led, 24pixels/m 72channels |
View angle: | 360° |
IC Chip: | DMX512 |
Input voltage: | 12V |
Power: | 34w/m |
Size: | 1000×40(mm) 500X40(mm) |
Features
Firstly, Diameter is 40mm, Customized available.
Secondly, DC12V power supply, 24pixels per meter, standard DMX512 communication protocol. Double sides PCB leds, achieve 360 degrees emitting and without shadow.
Thirdly, At the boths ending, we use the multi-fuction springs and it makes the product more flexible.
Fourthly, Works with universal ball joint and the stage lifting machine to control the tube up and down with effect changing.Lastly,
Normal size we have: 0.5M/1M/1.5M/2M Using
Dimension:

Application:
Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lightingProduct Control:
This pixel tube runs with DMX512 signal
DMX address set by manually, so you will need a DMX address writer
Each tube has 72DMX channels(24Pixels) per meter, 144pcs RGB smd 5050 leds per meter (each side 72pcs led per meter)
It can work with any standard DMX512 controller or Artnet controller

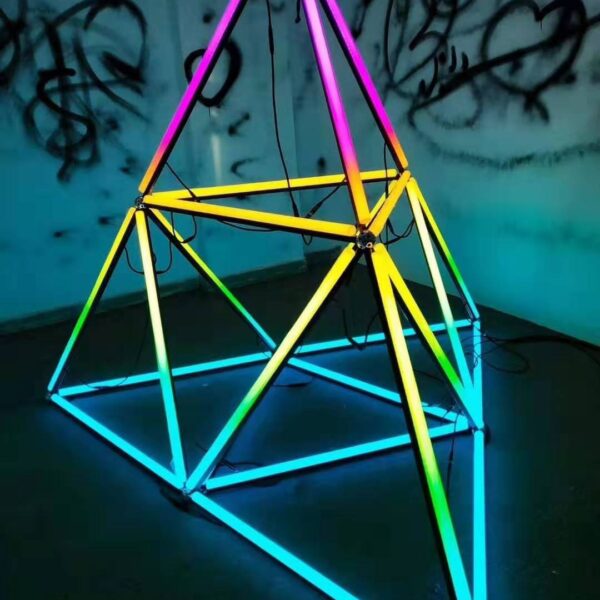

Photos:




Video show
https://youtu.be/qOFg8r-CNZU
