GS8208 dmx512 DC12V Foldable 20mm Led Grid Screen for Building Led Mesh Media Facade 361pixels 400 pixels for one square meter


1.DIY electronic production.

2.Advertising ,Display.
3.Dance floor decoration.
4.DJ background,DJ Table ,Stage floor etc.

Email: [email protected]

  • Description
  • Global Tab

GS8208 dmx512  DC12V Foldable 20mm Led Grid Screen for Building Led Mesh Media Facade 361pixels for one square meter

Product Parameter



    Voltage    DC12V
    LED Type    GS8208                 |  dmx512 optional
    LED Qty/Module    1leds/module
    diamater    20mm
  Pixel pitch    5.5cm  5.0cm optional
   Housing Body    PVC injection coating
    Power    0.3 W/PCS
    IP    IP 67
   Luminance    2600MCD
    connector    4pin JST female and male connector


GS8208 IC chipset ( spi protocel) 12bits  6K PWM refresh rate ,or dmx512 control  optional

Support customize the color, pitch, and sizeSupport all different control system
Its products include LED video displays / Led Mesh Screen for facade lighting,entertainment lighting, bridge lighting and events lighting (staging and rental) and trade show industries. It also has the functiion for outdoor LED billboards and message board for advertising field.
1.Flexible mounting system allows for customized solutions
2.Local integral in-built diagnostics tool
3.High-quality 12-bit per color image processing technology
4.Pixel-level brightness and color calibration for optimal image quality
5.DVI/SPI/RDM/DMX controllable (automatic protocol detection)
6.Intuitive mapping and addressing via  LED System Controller
7.Combined power/data input over signal cable
8.Supported by integrated power and data processor and simple cabling system

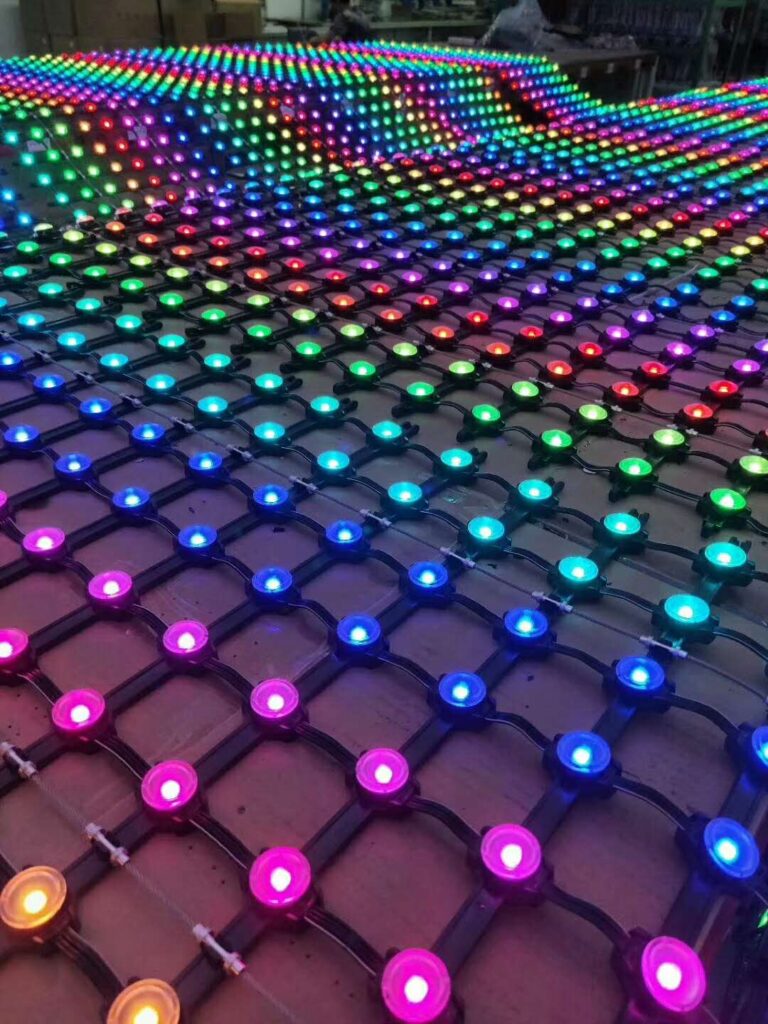

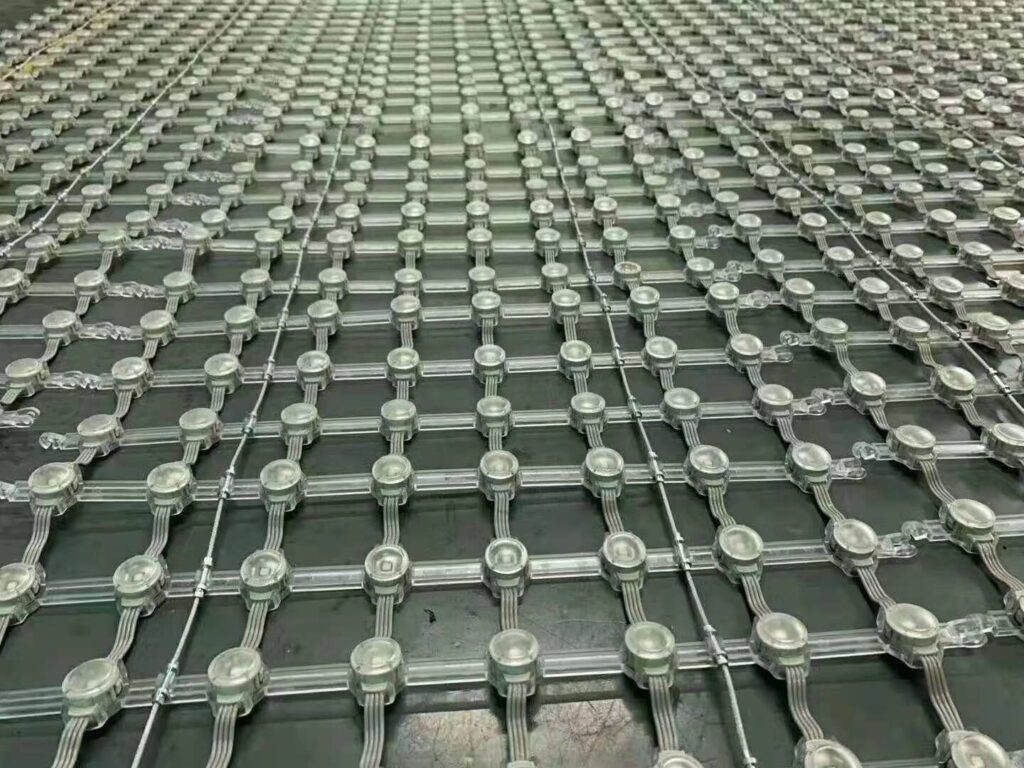

Picture details

installing accessories
