Digital side emitting color programmable sk6812 led strip 4020 addressable 60/ 72/90/120 /144leds per meter optional

Application

for KTV Lighting decoration, wine bar ,

amusement theme places , DIY household lights ,theaters ,

Night clubs ,and other attractions

  • Description
  • Global Tab

Digital side emitting color programmable sk6812 led strip 4020 addressable 60/90/120 leds

Product Parameter

    PN    RL-sk6812-4020-RGB-60-5V  RL-sk6812-4020-RGB-72-5VRL-sk6812-4020-RGB-90/120/144-5V
    Voltage    DC12V    DC5V    DC5V
    LED Type    SMD 4020    SMD 54020    SMD 4020
    LED Quantity    60 leds/m  with 10mm width /5mm or 8mm optional    72 leds/m  with 5mm width    90/120/144 leds/m with 8mm width
    Protocol    SPI – sk6812 sk6812 ( (IC Built into 5050)    SPI-sk6812    SPI – sk6812
    control  K1000c/T-300K/Arduino/Glediator/DMX/Artnet/Raspberry
    Pixel/m    60 PCS    72PCS    90/120/144 PCS
    PCB Color    White/Black    White/Black    White/Black
    Power     12W/M    14.4W/M    18/24/28/8 W/M
    PCB thickness    2 ounce copper
    O.T    -30℃ ~ 45℃    -30℃ ~ 45℃    -30℃ ~ 45℃

Description

Control IC included, supporting numerous Color-change effects,
Pcontrol by SD controller,Arduino,DMX512,Artnet,
PCB Color: White & Black available for choose,
Absolutely addressable ,each IC built inside RGB LED,
5M per roll,Customer’s size available also,
The non-waterproof version strip attached white color 3M tape on back side of PCB

Advantages

1. What is better than 020 or 335 side view LEDs? Smart Digital SK6812 side 4020 LED ! These Digital sk6812 Side view 4020 RGB pixel led strip 60leds/m is pixel version .

These LED strips are fun and glowy, and you can control each sk6812 side 4020 view LED individually.

2. This is Digital sk6812 Side view RGB pixel led strip 60leds/m with bare board or clearing case and white / black flex pcb,

we also have digital sk6812 side 4020 RGB led strips with 72 leds/m, 90 leds/m and 120 leds/m.

3. The LED is “split”, it is side emitting color with 4.0×2.0mm. Lit up these are insanely bright and can be controlled with 8-bit PWM per channel. Great for adding lots of colorful to your project.

4. SK6812 side 4020 LEDS USE 800 KHz protocol so specific timing is required.

On ws2812b leds, the PWM RATE IS 400 Hz,which works well but is noticeable if the LED is moving.

5. Compared to other sk6812 (rgbw) series LEDs, SK6812 side 4020 LEDs has 4 pin even it’s quite thin size, and the Pins are almost covered by the LED’s body,

it’s hard to replace LED if any of broken, cut the unit 4020 LED on PCB will be a better option.

Packaging

5m/roll 90rolls/ carton carton size: 48cm*48cm*28cm  GW: 9.5kg with Ip20

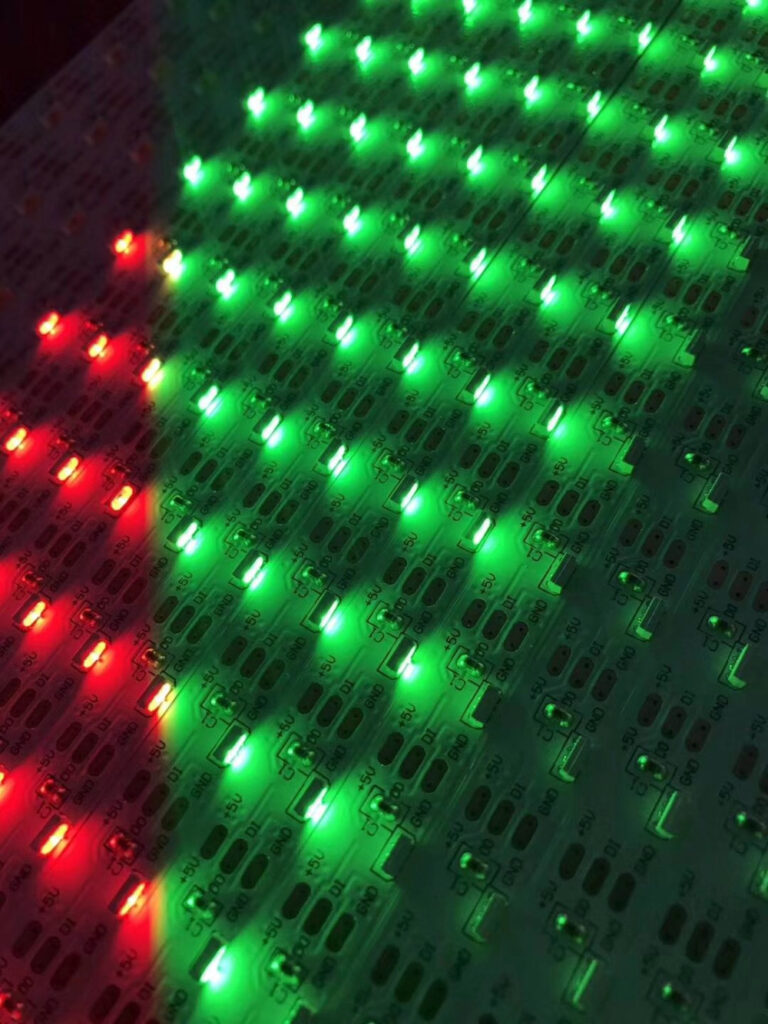

Picture  details





Wiring chart
