Dc5V WS2811/WS2812B/SK6812 5050 rgb LED Strip 30 60 74 96 144 pixels per meter
Describe:
SK6812 lamp is a popular type of Built-in lamp
he is three line , Date and Clock together on one lines
- Color:Full Color RGB
- LED Quantity: 30/60/74/96/144leds per meter
- Size: 5000*10*2.5(mm)
- View angle:120°
- Working Input Voltage: 5V
- Drive Mode:Contant Voltage

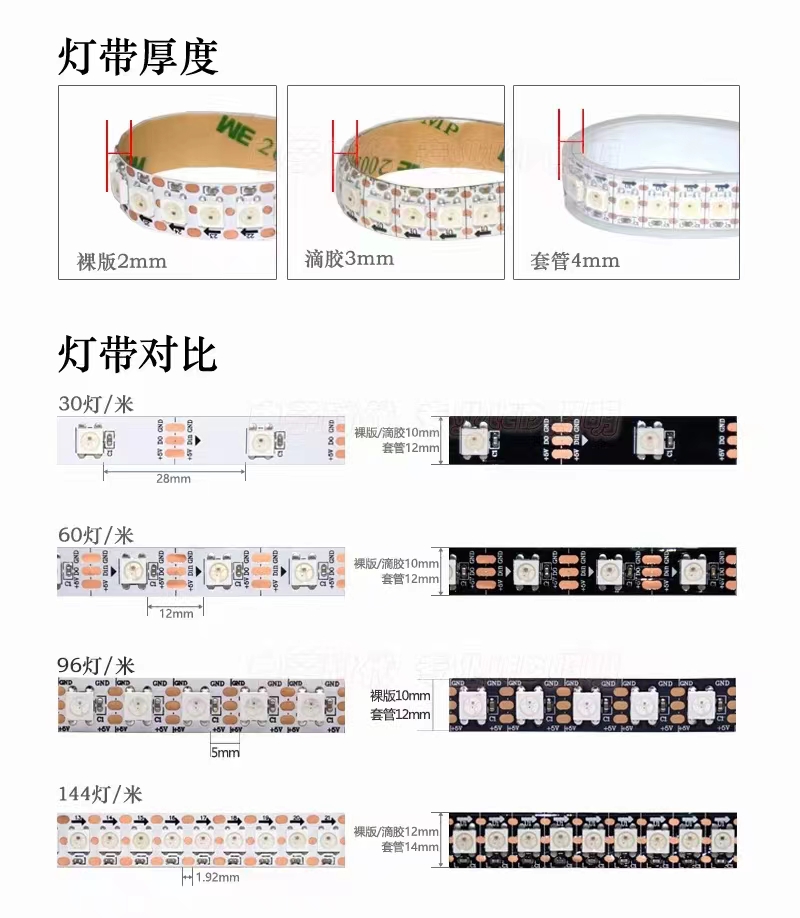

- pixel pitch 33.33mm/16.66mm/13..88/… 6.94mm
- Packaging: 5m/roll
- white/black PCB with width 10mm/12mm
- Drive Mode:Contant Voltage
- Size: 5000*10*2.5(mm)
Waterproof Rate:
- IP20 Non-waterproof with 3M sticker on the back

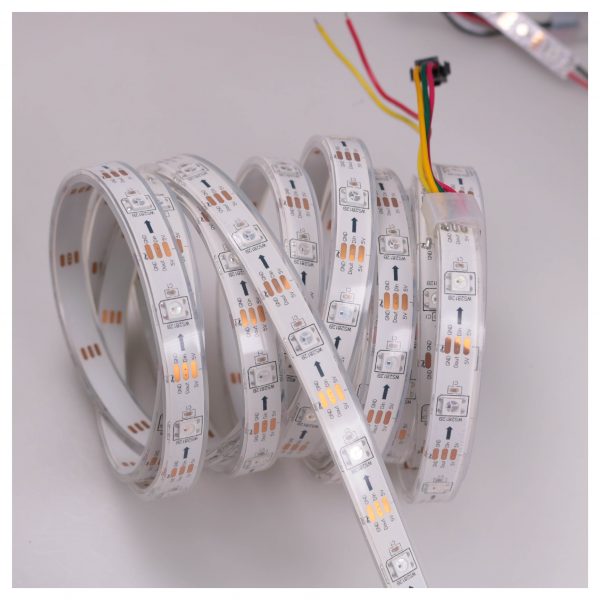

- IP65 waterproof is silicone gel on the surface
- IP67: silicone tube/coating
- IP68: silcone gel(or epoxy) inside silicone tube
