DC12V  Individually digital full color 5050 RGB  LED Strip ws2815 96pixels/m 12mm width

DC12V  Individually Addressable 5050 RGB  LED Strip ws2815

Key specification

Fastest pixel  rgb  LED Strip
Led type:5050 SMD LED
IC type: ws2815
PCB Width:10mm
Led lighting angle: 120°
LED Qty: 30leds/m, 60leds/m, 72leds/m, 96leds/m, 144leds/m
IP Rating IP20, IP65, IP67, IP68.
Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
1 LED 1 IC, individual controlled, can be made into high-density high-definition display;

Category: Tag:

  • Description
  • Global Tab

DC12V  Individually digital full color 5050 RGB  LED Strip ws2815 96pixels/m 12mm width

Key specification

P/N: RL-STR-ws2815-5050RGB-96-12V
Led type:5050 SMD LED
IC type: ws2815
PCB Width:12mm
Led lighting angle: 120°
LED Qty: 96leds/m
IP Rating IP20, IP65, IP67, IP68.
Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
1 LED 1 IC, individual controlled, can be made into high-density high-definition display;

Advantages

  • ws2815  led strip with dual signal ,one pixels no work , no affect the next one working
  • ws2815 led with capacitance inside the led lamp
  • one roll(10meters)can be powered with one power input without color difference,
  • Pure copper bracket and 99.99% gold wire for WS2815  LED
  • 2OZ FPCB(35um cooper)with double cooper layer2 sides membrane cover the PFCB.Make sure the copper no drop from the pcb board ,
  • White PCB and black PCB optiona
  • It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .
  • Flexible PCB material . ever 1LEDcan be cut , there is cut lines every 16.6mm for 60leds/M
  • 256 Gray scale(8bits)

Controller system:

1.Offline controllers, online controller work with computer,Such as LEDedit,
2.DMX console ,
3.Madrix software & map and any other artnet software.
4.Also the singlechip,such as the Arduino.

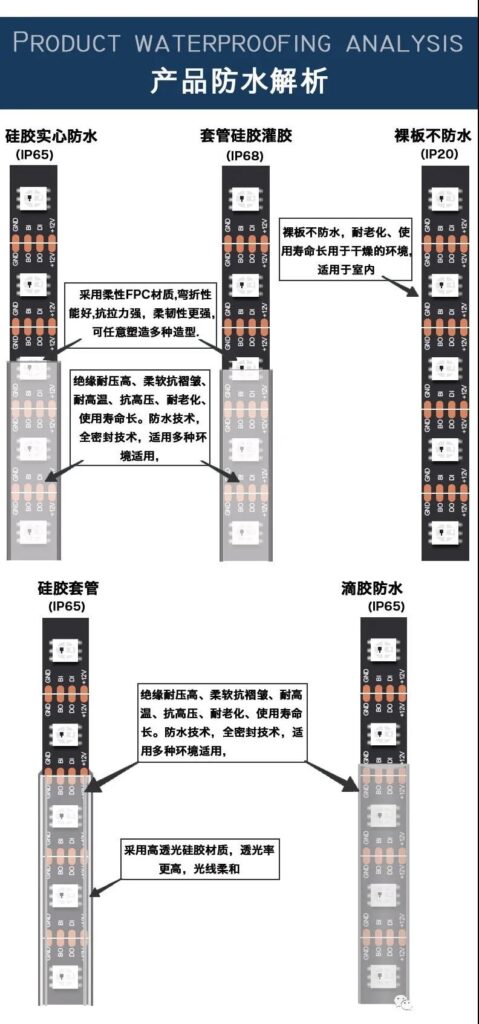

Waterproof  Type

IP20 non waterproof:3M sticker on the back, easy installation.
IP65 waterproof: Silcone gel or epoxy on the surface,3M sticker on the back.
IP67 waterproof: Silicone tube, equipped with card buckle and screw.
IP68 waterproof: Silicone gel or epoxy inside silicone tube,equipped with card buckle and screw.

Applications:

Widely used for decoration use, hotels, clubs, shopping malls,night bar, disco
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting








Diemension of ws2815 led strip  30pixels /m  60pixels/M  144pixels /m

Wiring chart with controller
