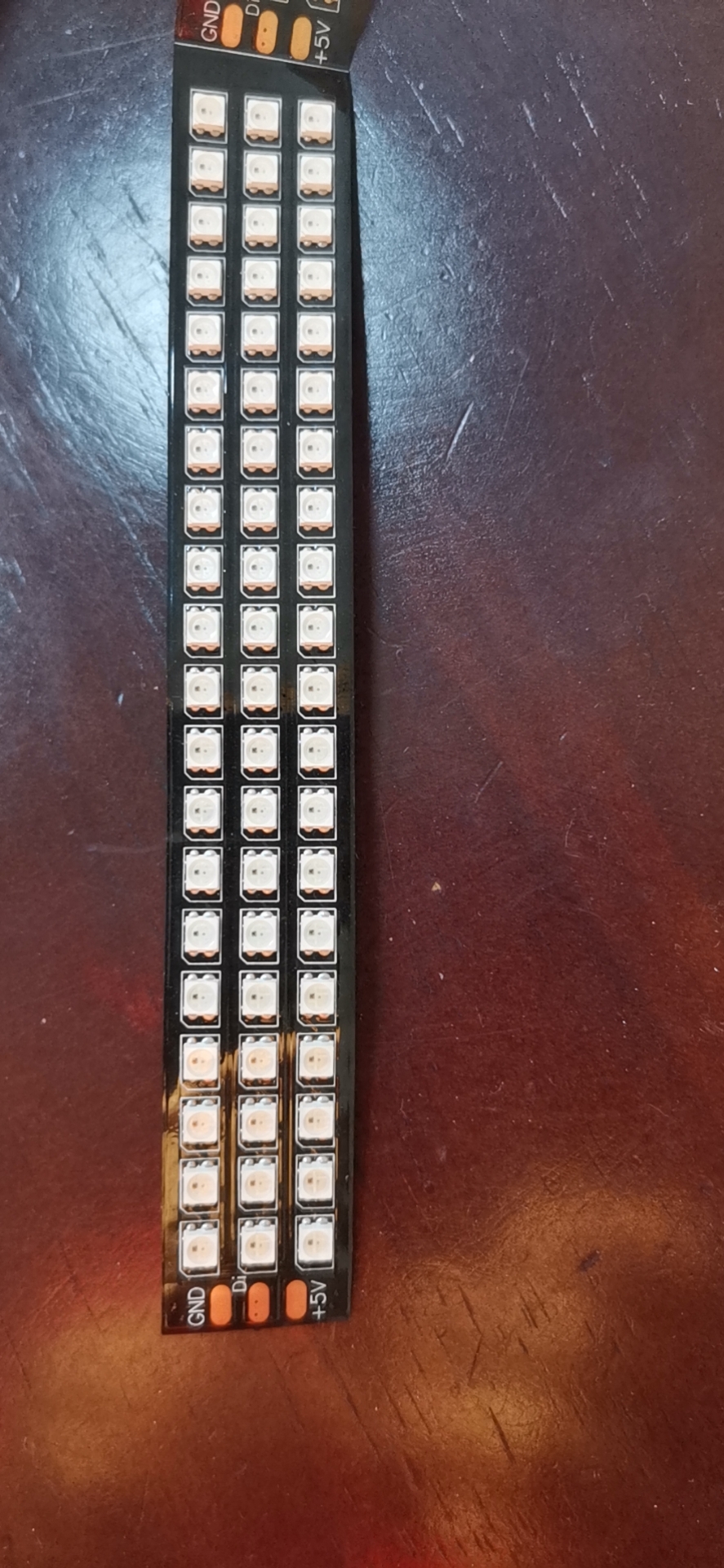

|● Digital customized sk6812/ws2812B addressable pixel rgb led panel 3X60 Pixels per pcs|
*Addressable flexible rectangle led madrix with 3X60 Pixels
*256 LEDs individually controlled,PCB size of panel is 5cmX60cm
*Hongqi FPCB with 2+4 ounce copper FPCB
(input:male connector, output female connector)
*nonwaterproof Ip20 indoor use only
*red cooper bracket and 99.9% gold wire for the RGB led chip ,
*2sides membrane cover the pcb board. make sure the copper no drop from the pcb board .
*It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and 15cm long separated bare Power / Ground Wires . Customized length is workable .
*180LEDs/pcs. 5V low voltage inputted , don’t over 5V , otherwise you will destroy the entire panel .
- Wire define
Red: +Dc5V Green: Data Yellow:GND
