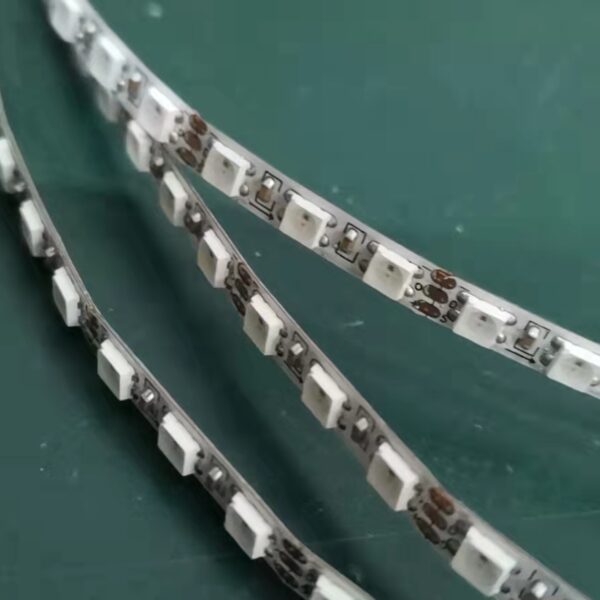

5V Narrow 5mm width ws2812B sk6812 full color Addressable Pixel 3535 RGB LED strip Light 120pixels per meter
Features:
Input voltage:DC 5V
led quantity: 120pixels/m (3pixels per cutting unit)
cutting unit : 2.5cm
LED resource:sk6812 3535 RGB led( 3535 SMD RGB LED with built-in improved version of sk6812 ic)
LED:each LED can be controlled individually.
IC Type: improved version sk6812 IC(built inside the 3535 SMD RGB led)
FPC Color:White
Colors:Full color RGB, dream color changing
Package:in anti-static bag,IP30 with adhensive tape on the back.
IP65 and Ip67 and Ip68 optional!
