360 Viewing 15mm diamter RGB led vertical Tube Dc12V 32 Pixels 48 pixels 60 pixels 3D pixel led tube

  • Description
  • Global Tab

360 Viewing 15mm diamter RGB led vertical Tube Dc12V 24Pixels 72led per side 144 led pixel led tube

Product Parameter for Model:RL-Bar-SM16703 -5050RGB-32P-64-12V-15mm-360

P/NLED Qty/PCSSize(mm)PixelVCCPowerProtocolChannelMCD per 5050RGB LEDIP
RL-Bar-SM16703 -5050RGB-32P-64-12V -15mm-3605050 RGB ledsL1000*D1532DC12V15.36W/MSPI96CHR800/G2100/B480IP65


1.This  SPI Control LED Tube designed by clear PC tube,

2.The whole tube had 32 Pixel , SM16703 IC chipet ,belong to SPI control,
3. 120pcs supper bright  SMD RGB LED (one side with 72led),
4.Both side make it 360 viewing,(in total 64LEDs)
5.Each tube included 1pcs eye hook for installation,
6.Every LED tube attached a  waterproof 4Pin connector (clear or black color optional),
7.The length of connector 20cm,4Pin 20AWG copper wire in white PVC,(customs length available)

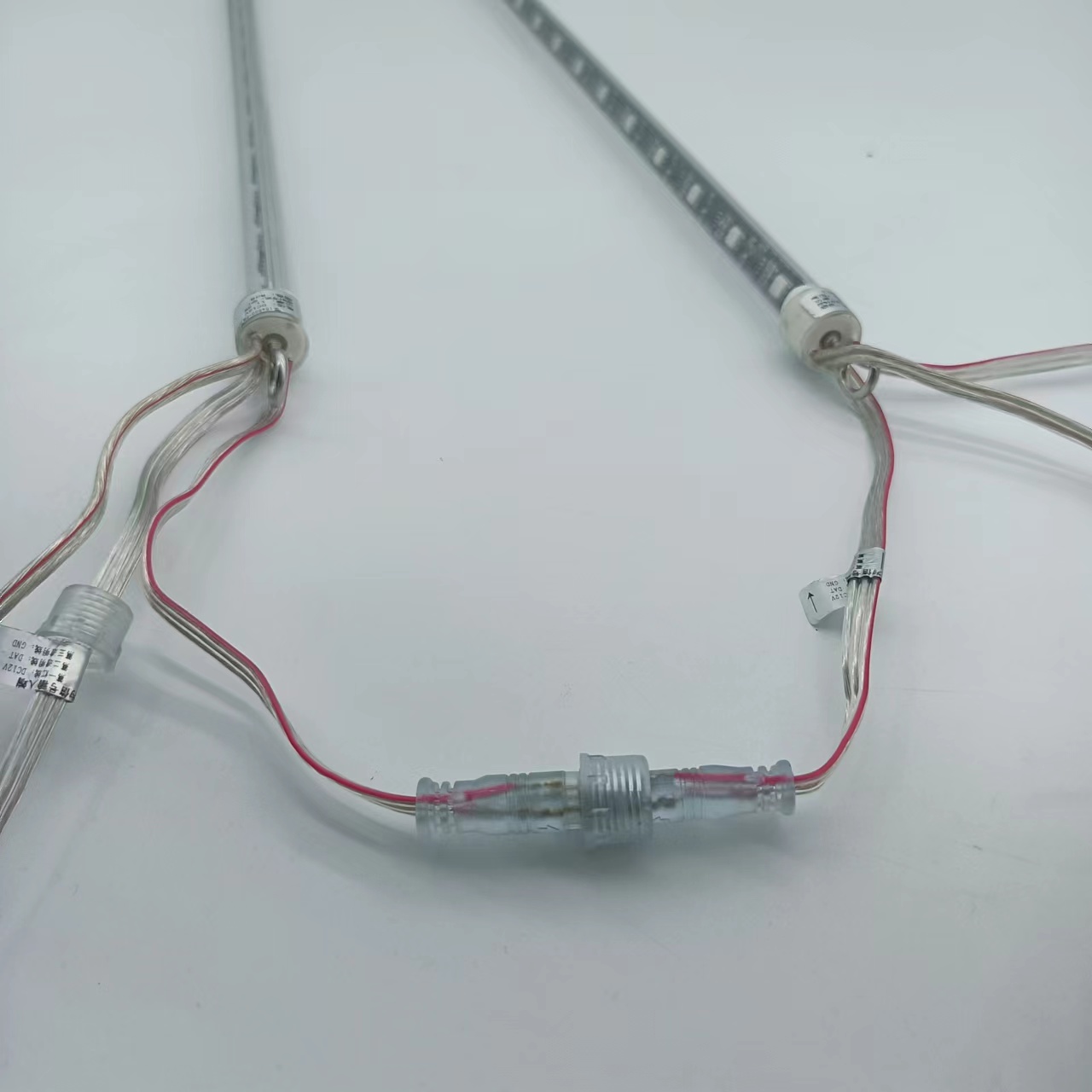

8.The Tube with female and  male 4pin connector, can connect next LED  Tube easily.
9.The diameter is tube is 15mm (we also offer 20mm/30mm diameter size),
10.Avaliable size : 50cm & 100 cm&150cm&200


1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club

6. Outdoor building,fridge

PS:Diamater :1.5cm 2.0cm 2.5cm 3.0cm optional


PS:Dc12V 32 pixels   48 pixels  60 pixels per meter with 15mm diamter  optional !
