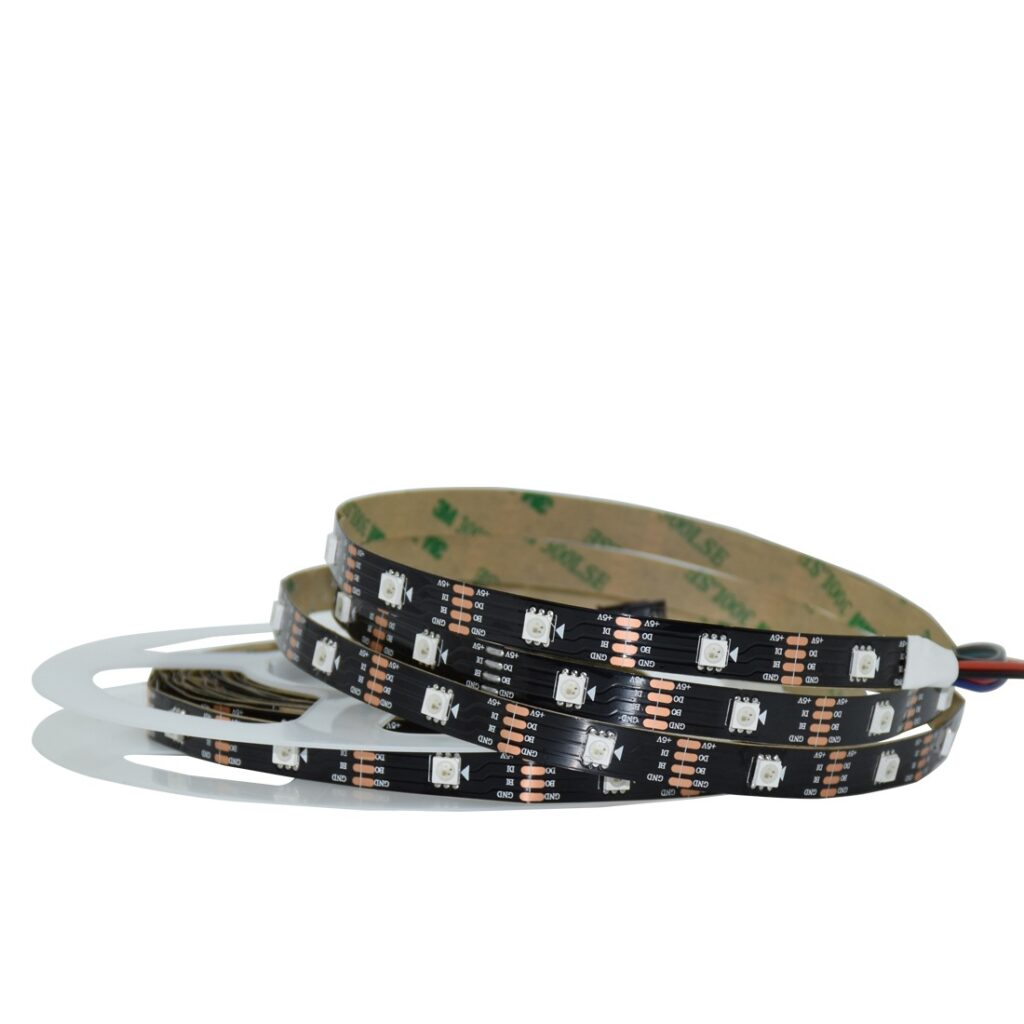

DC12V  Individually digital full color 5050 RGB  LED Strip sk6813 (good replacement of ws2815)

DC12V  Individually digital full color 5050 RGB  LED Strip sk6813 (good replacement of ws2815)

Key specification

Fastest pixel  rgb  LED Strip
Led type:5050 SMD LED
IC type: sk6813
PCB Width:10mm
Led lighting angle: 120°
LED Qty: 30leds/m, 60leds/m,  144leds/m
IP Rating IP20, IP65, IP67, IP68.

signal in parallel, one pixel falled , donot affect next pixel leds workling ,good replacment of  ws2815.
Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
1 LED 1 IC, individual controlled, can be made into high-density high-definition display;

  • Description
  • Global Tab

DC12V  Individually digital full color 5050 RGB  LED Strip sk6813 (good replacement of ws2815)



one pixel falled , donot affect next pixel leds workling ,good replacment of  ws2815.

Key specification

Fastest pixel  rgb  LED Strip
Led type:5050 SMD LED
IC type: sk6813
PCB Width:10mm
Led lighting angle: 120°
LED Qty: 30leds/m, 60leds/m, 120leds/m  144leds/m
IP Rating IP20, IP65, IP67, IP68.

Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
1 LED 1 IC, individual controlled, can be made into high-density high-definition display;

Advantages

  • sk6813  led strip with dual signal ,one pixels no work , no affect the next one working
  • sk6813  led with capacitance inside the led lamp
  • one roll(10meters)can be powered with one power input without color difference,
  • Pure copper bracket and 99.99% gold wire for sk6813 LED
  • 2OZ FPCB(35um cooper)with double cooper layer2 sides membrane cover the PFCB.Make sure the copper no drop from the pcb board ,
  • White PCB and black PCB optiona
  • It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .
  • Flexible PCB material . ever 1LEDcan be cut , there is cut lines every 16.6mm for 60leds/M
  • 256 Gray scale(8bits)

Controller system:

1.Offline controllers, online controller work with computer,Such as LEDedit,ledstudio,ect
2.DMX console ,
3.Art net led controller ,support Madrix software & map and any other artnet software.
4.Also the singlechip,such as the Arduino.
Waterproof  Type

IP20 non waterproof:3M sticker on the back, easy installation.
IP65 waterproof: Silcone gel or epoxy on the surface,3M sticker on the back.
IP67 waterproof: Silicone tube, equipped with card buckle and screw.
IP68 waterproof: Silicone gel or epoxy inside silicone tube,equipped with card buckle and screw.

Applications:

Widely used for decoration use, hotels, clubs, shopping malls,night bar, disco
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting








the sk6813 12V pixel led strip mounted inside the 60mm round tube





Diemension of sk6813 led strip 60pixels/M









Connection chart
