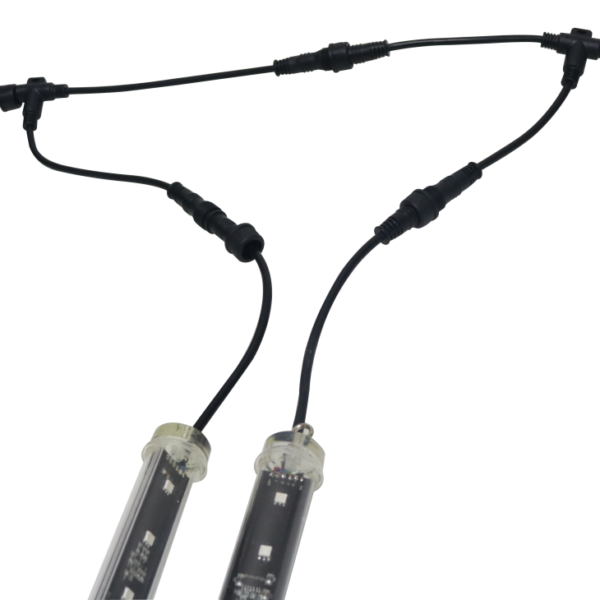

360 View SPI Vertical sk6812 5050 RGB pixel led Tube Dc5V 60pixels per meter

  • Description
  • Global Tab

360 View SPI Vertical sk6812 5050 RGB pixel led Tube Dc5V 60pixels per meter

Product Parameter:

P/NLED Qty/PCSSize(mm)PixelVCCPowerProtocolChannelMCD per LEDIP
RL-bar-sk6812-5050RGB-120-5V5050 RGB 120ledsL1000*D3060DC5V24W/MSPI180ChR800/G2100/B480IP65

Features:

1.This SPI Control LED Tube designed by clear PC tube,

2.The whole tube had 60 Pixel which is 180ch DMX address,
3.60pcs supper bright Epistar SMD RGB LED (one side),
4.Both side make it 360 viewing,(in ttotal 120LEDs)
5.Each tube included 1pcs eye hook for installation,
6.Every dmx tube attached a  waterproof 3Pin connector (black color),
7.The length of connector 20cm,3Pin 20AWG copper wire in white PVC,(customs length available)
8.The tube  has femle and male 3pin connector to connect other  Tubes,
9.The diameter is tube is 30mm (we also offer 20mm diameter size),
10.Avaliable size : 50cm & 100 cm.

11.  Available Pixels per meter :30pixels and 48pixels per meter available

Connection to dmx controller and 5V power sure:

Youtube project video show



Application

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club

6. Outdoor building,fridge
