Rose lighting flow water dual white 126 led strip kit for smat home lighting and lights up your home colorful!



Application:

1. Architectural decorative lighting and backlighting for homes, hotels, marketplaces, bars etc;

 2. Auditorium walkway lighting, outdoor illuminated signs and advertisements;
 3. Illumination lighting using business walkway, canopy, stairway lighting, amusement park;
 4. Channel signal lighting for stores, restaurants, bars, etc;
 5. DIY lights for home use;
more deyails ,please contact at [email protected]

  • Description
  • Global Tab

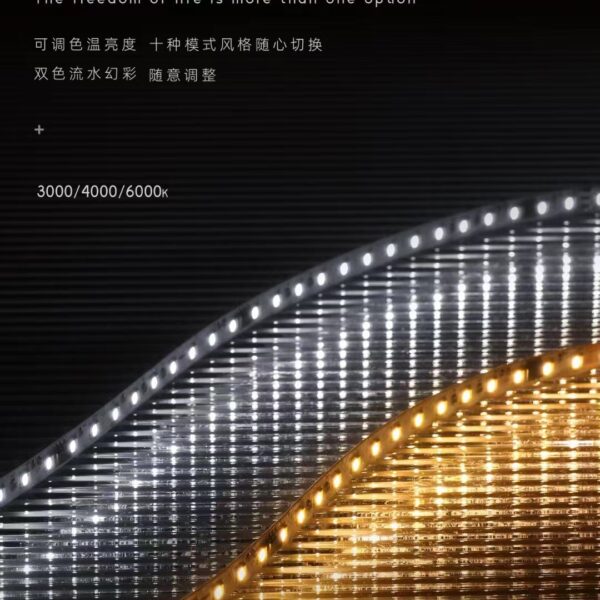

Dc24V TM1903 ws2811 sm16703 Dual white 2700k 6500k 2835 Digital white flow Pixel LED Strip14pixels/m 126leds/m

Rose lighting flow water led strip kit for smat home lighting and lights up your home colorful!

Rose lighting flow water led panel controler with 23 programs inside for flow water led strip

Rose lighting flow water led controler with 23 programs inside for flow water led strip wihte remote control box

Rose lighting flow water led  panel  controler with 23 programs inside for flow water led strip wihte remote control box(many flow water effect inside)

Rose lighting flow water led strip kit for smat home lighting and lights up your home colorful!

Dual white flow water led strip kit for smat home lighting -lights up your home colorful!

Describe:

  • Item: RL-STR-TM1903-2835-126-14P-24V-10mm-2700K/6500k
  • IC Type:TM1903
  • Color:white (2700k–6500K)
  • LED  Type: smd 2835 led
  • LED Quantity: 126pcs
  • Size: 5000*8*1.5(mm)
  • View angle:120°
  • Working Input Voltage: 24V
  • Drive Mode:Constant Voltage
  • Pixels/M :6pixels
  • One  TM1903 IC control 21 pcs smd 2835 leds(one ic for 2700K 2835led ,one ic for 6500K 2835 led)

Advantages

1.PWM refresh rate: 800kHz, transfer speed 800k bps,

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable ,

3. Pure copper bracket and pure gold wire for 3035 smd led ,

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6.  pcs smd 2835 leds ,One IC control 21 led ,

7. 24V low voltage inputted , don’t over 25V , otherwise you will destroy the entire strip .

8. Controller System:SD controller , Ardruino , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

waterproof Type

IP20:  Non-waterproof with 3M sticker on the back, Size:5000*8*1.5mm

IP65: waterproof is silicone gel on the surface,Size:5000*8*3mm

IP67: silicone tube,Size:5000*8*2.5mm

IP68: silcone gel inside silicone tube.Size:5000*8*2.5mm

Product details

There is other  Dual white optional with 20pixels  120led per meter optional but need MOQ 500meter

Bellow CCT for white  optional!

There is dual white flow water led controller

There is detailed user of the 6key panel controller kit please

Dualwhite 6key panel introduction
