DC24V Addressable LED video stage Bar 64Pixels/M
Application:
1. Night Club,bar
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,ect
inquiry please email at [email protected]
- Description
- Global Tab
DC24V Addressable LED video stage Bar 64Pixels/M
Product Parameter
Product Type | Digital full color SPI led bar |
Voltage | DC24V |
LED Type | SK 6812 RGB |
LED Quantity | 64 leds/pcs |
length | 0.5m 1.0m 1.5m 2.0m |
Beam Angle | 140° |
Emitting Color | IC RGB |
Power | 16.5 W |
Channel | 64pixels |
O.T | -30℃ ~ 50℃ |
Description
this tube looks like same as our DMX tube ,same as it’s made by aluminum extrusion plus milky white cover /transparent shell
but the board designed by 64pcs SK6812 RGB LED and 24V DC operation,this makes the installation much
easier and no need put
lots of power cable
Each tube included 2pcs Aluminum clips (without screw) it’s cannot adjust the angle but it’s move-able horizontal
Each tube attached a pair of wateproof 3Pin connector output from bottom side ,this could achive No-slot joint
when two pcs tube link in series
Although it’s DC24V working , the addressable linear still requested to feed power every 5 meters
Pictures details

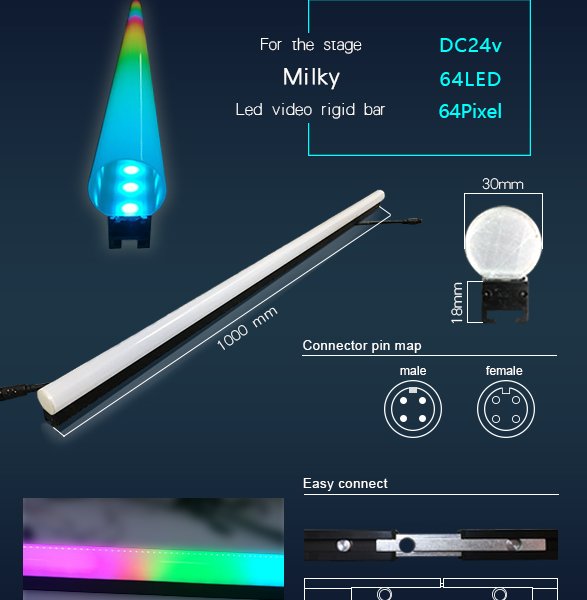

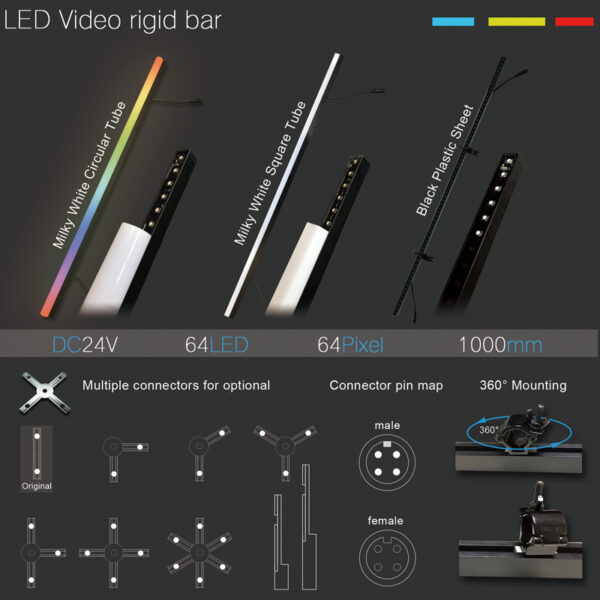

Aliumium size: 18*18mm(123)
square size:30*46mm(4)
round size: 18*36mm(5)
Video show
click here to download the detailed specification please
https://www.rose-lighting.com/wp-content/uploads/sites/53/2020/11/LED-video-bar-digital.pdf
