DC24V 36W Ip66 light outdoor waterproof dmx rgb led wall washer

  • Description
  • Global Tab
Specification
DC24V 36W Ip66 light outdoor waterproof Osram dmx rgb led wall washer
Parameter
Product Number
RL-bar-dmx512-3535RGB-36-Dc24V
rated voltage
DC24V  36W/m
material
Aluminum and Tempered Glass
light color
RGB
installation
embedded
Control (IC)
DMX512
Light Source
Osram-3535 36pcs /one  row per meter
size
L1000*W36*H35mm

Product Details

These products are made by High brightness power led ,high brightness LED with big view angle (support customize the beam angle).

 Use Osram chip, with high Brightness,

light color consistency, good color saturation

Strong stability etc.

 The length of the line lights can be arbitrarily set for seamless stitching.

For the small gap of the glass curtain wall, this type of line light can be installed and installed to realize the light without seeing the light, and does not affect the original design of the building.

 The wire and shell are resistant to cold, UVand flame retardant material, suitable for long-term outdoor use.

-This High power RGB linear wall washer mounted
the driver outside of the housing.
– 3 DMX channel per meter, address set by manual

-Colour Changing RGB LEDs.
– Anodised Aluminium Housing.
– Water resistant to IP66.

– Tempered Glass protection.
– DMX controllable.
– Can be installed end to end.

– wires length 150mm, can be custom made.
– Linear length can be custom made

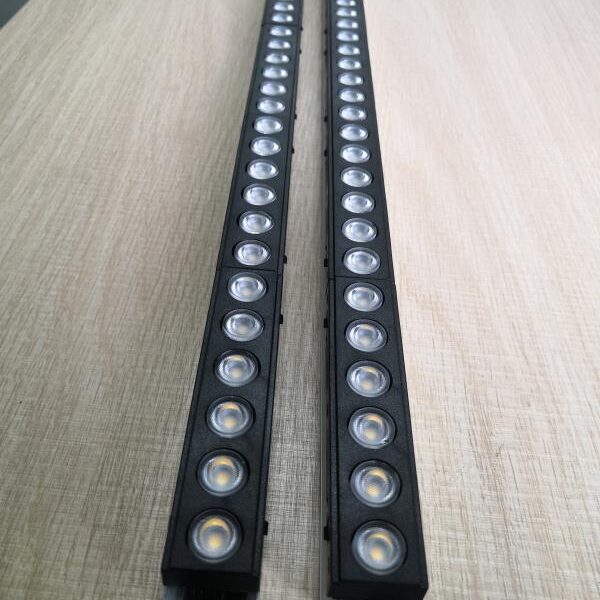

Detailed Image
The wiring chart
Accessories
Appliction
Video show
https://www.youtube.com/watch?v=wgxzl5E-b_0
